Description

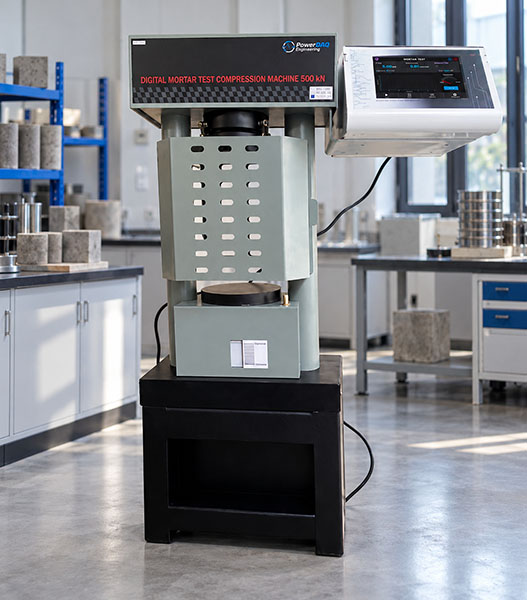

The PowerDAQ M500 with Mortar Compression Machine System is a digital data acquisition and monitoring solution designed for compressive strength testing of mortar specimens. With a maximum load capacity of 500 kN, the system provides real-time load monitoring, pressure trend visualization, and automatic compressive strength calculation to support accurate and efficient laboratory testing.
Featuring a 7-inch touchscreen, USB flash drive data storage, and a Linux-based embedded platform, PowerDAQ M500 simplifies test operation, data management, and result documentation. Test data can be exported in CSV format for further analysis, while PDF reports provide convenient documentation of test results.
Designed for laboratory environments, the system combines an intuitive user interface with a robust metal enclosure to support routine material testing and quality control applications.
Technical Specifications
| Specification | Description |
|---|---|
| Product Name | PowerDAQ C2000 Mortar Compression Testing System |
| Application | Mortar Compressive Strength Software |
| Maximum Load Capacity | 500 kN |
| Display | 7-inch touchscreen |
| Voltage | 220-240V |
| Data Storage | USB Drive |
| Channel | 1 |
| Data Storage | USB flash drive |
| User Interface | Touchscreen graphical interface |
| Enclosure | Metal housing |
Key Features
- 500 kN Load Capacity — Supports compression testing applications within the configured measurement range.
- Real-Time Load Monitoring — Displays load measurements throughout the compression test.
- Live Trend Graph — Visualizes load changes during testing.
- Automatic Strength Calculation — Calculates compressive strength using the measured load and specimen dimensions.
- Pace Rate Indicator — Helps operators monitor the loading rate during testing.
- USB Data Storage — Enables convenient storage, transfer, and backup of test data.
- CSV Export and PDF Reports — Facilitates data analysis, reporting, and record keeping.
- 7-Inch Touchscreen — Provides a straightforward interface for operating and monitoring tests.
- Linux-Based Embedded Platform — Provides a compact computing platform with fast system startup.
PowerDAQ C2000 — Precision Data Acquisition for Material Testing.
Engineering note: The 500 kN rating refers to the configured measurement capacity. Actual testing capacity and accuracy depend on the installed load cell, calibration, and the specifications of the compression testing machine.
