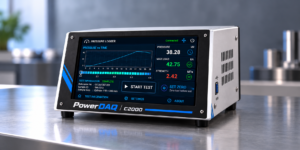

PowerDAQ C2000 – Pressure Data Logger

The PowerDAQ C2000 is a digital data acquisition system designed for real-time monitoring and recording of pressure and load measurements during material testing. Equipped with a 7-inch touchscreen and an intuitive user interface, it enables operators to monitor live readings, visualize pressure trends, track maximum load values, and manage test data efficiently. Designed for laboratory and industrial applications, the PowerDAQ C2000 supports material testing workflows for concrete, soil, asphalt, and other engineering materials. Its robust metal enclosure, fast system startup, and USB-based data storage provide a practical solution for modern testing environments.

Key Features

• High-Capacity Sensor Support – Supports sensor configurations with capacities of up to 2,000 kN, depending on the installed sensor and system configuration.
• Real-Time Monitoring – Displays live pressure and load measurements throughout the testing process.
• Pressure Trend Graph – Visualizes pressure changes over time through a real-time trend graph.
• Maximum Load Tracking – Automatically tracks and displays the maximum load reached during testing.
• Pace Rate Indicator – Displays the loading rate to help operators monitor the pace of load application during testing.
• Automatic Strength Calculation – Calculates specimen strength based on measured load and specimen dimensions.
• 7-Inch Touchscreen Interface – Provides an intuitive interface for test operation, monitoring, and configuration.
• USB Flash Drive Storage – Stores test data on a USB flash drive for convenient access, transfer, and backup.
• CSV Data Export – Exports measurement data in CSV format for further analysis using spreadsheet applications and other data-processing tools.
• PDF Test Reports – Generates PDF reports for documentation, record keeping, and sharing test results.
• Fast System Startup – Designed for quick booting, allowing operators to begin working with minimal waiting time.
• Flexible Sensor Integration – Designed to accommodate different sensor types and testing machine configurations, depending on system requirements.
• Industrial Metal Enclosure – Features a durable metal housing suitable for laboratory and industrial environments.

Applications

PowerDAQ C2000 is designed for data acquisition and monitoring applications involving:

• Concrete and mortar compression testing
• Soil and geotechnical material testing
• Asphalt and pavement material testing
• Load and pressure monitoring
• Other laboratory and industrial testing applications requiring real-time measurement and data logging

Technical Highlights

Specification	Description
Product Type	Pressure Data Logger
Display	7-inch touchscreen
Sensor Capacity	Up to 2,000 kN, depending on configuration
Monitoring	Real-time measurements and pressure trend graph
Loading Information	Maximum load and pace rate indicator
Strength Calculation	Based on load and specimen dimensions
Data Storage	USB flash drive
Data Export	CSV
Report Format	PDF
System Startup	Fast booting
Enclosure	Metal housing

PowerDAQ C2000 — Precision Data Acquisition for Material Testing.
